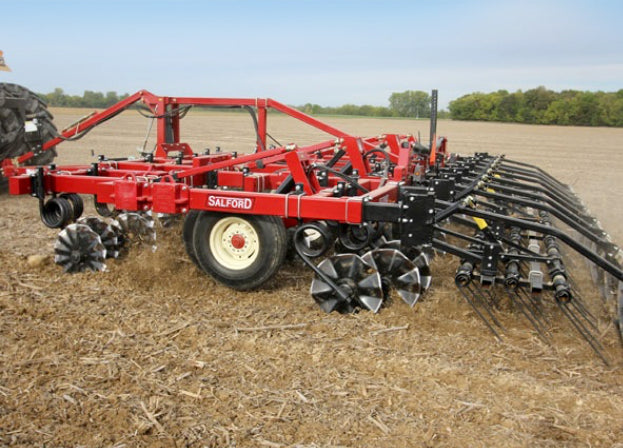

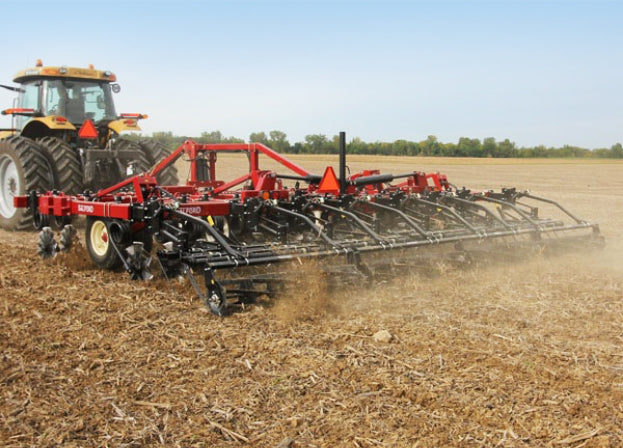

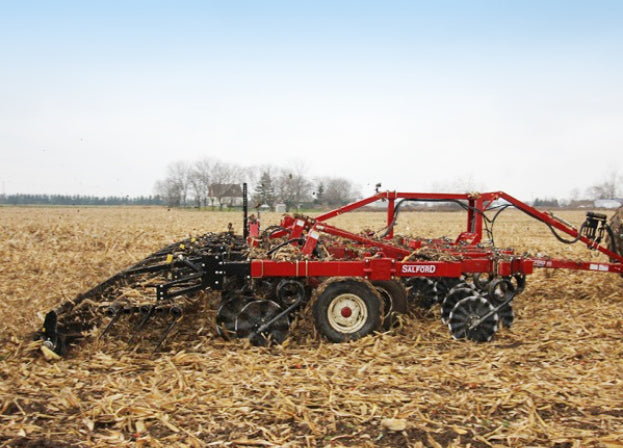

Vertical Tillage (I-2100)
Need more information about this product?
Call us at 419-942-3512.
- Product Description
- Options
- Additional Product Info
- Application Studies
- Videos
- Testimonials
1 5/8" Coil-Tech Coulter II Blade Mount
The I-2100 uses the Coil-Tech Coulter II—a heavier coil spring—to carry larger five-bolt hubs and 22-inch blades, increasing Coil-Tech's jackhammer effect and allowing the coil spring to penetrate into tougher ground conditions. The I-2100 employs the heavy frame design used for the rubber suspension Independent Series machines for increased weight per blade and to manage the additional vibration created by this second generation Coil-Tech. True to the Independent series design, this machine is able to cover an acre per hour, per foot. In other words, a 41-foot machine will cover 41 acres per hour. The I-2100 has been engineered for compatibility with I-Series seeding and fertilizer attachments to allow producers to combine field operations, saving fuel and man hours.
Coulters and Mounts
- 20” dia x 5mm coulter
- Boron steel blades
- 8 or 13 wave blades
- 7” of vertical travel
Frame
- Heavy Duty 4”x 6” tubing
- Hydraulic level lift
- Hydraulic single-point depth control
- Heat treated cast clevis hitch
- Operator convenience center
- Welded main frame with capped tube ends
Tires—Mainframe
- 12’ 6 bolt 11L x 15 “F”
- 16’ 6 Bolt 11L x 15 “F”
- 20’ – 24’ 8 bolt 12.5 L x 15 “F”
- 28’ - 36’ 8 bolt 305/70 x R22.5
- 41’ (3 Section) 8 bolt 305/70 x R22.5
- 41’ (5 Section) 8 bolt 425/65 x R22.5
- 50’ (5 Section) 10 bolt 425-65R x 22.5
- 60’ (5 section) – 10 bolt 445-65R x 22.5
Tires—Wings
- 20’ – 41’ All Wings
- 11L x 15 6 bolt load range “D"
- 50’, 60’ – All Wings
- bolt 12.5 L x 15 “F”
Finishing Package
- FlexFinish Hydraulically Adjustable Tines and Rolling Baskets (28' and up only)
- Manually Adjustable HD Tines and Rolling Baskets
Finishing Package Consist of:
- Heavy Duty 3 Bar 1/2” Tines
- 1/2” dia. tine, strength for exceptional leveling
- 3 ranks with 20” clearance
- No tool pitch adjustment
- Heavy Duty 14” Rolling Harrow
- Adjustable down pressure
- Triple seal 1.5” bearing resists rock damage, even at high speed
- Flex finish hydraulically adjustable rolling harrow (Optional, 28' and up only)
- 100-lb. Weight Kits
- Adjustable Tow Hitch (one-man connection)
- Hydraulic Lines and Quick Coupler to Tow Hitch
- Axle Pivot Grease Bank
- Switchblade Hydraulic Shank
- Roller Dirt Shield
Product Description
1 5/8" Coil-Tech Coulter II Blade Mount
The I-2100 uses the Coil-Tech Coulter II—a heavier coil spring—to carry larger five-bolt hubs and 22-inch blades, increasing Coil-Tech's jackhammer effect and allowing the coil spring to penetrate into tougher ground conditions. The I-2100 employs the heavy frame design used for the rubber suspension Independent Series machines for increased weight per blade and to manage the additional vibration created by this second generation Coil-Tech. True to the Independent series design, this machine is able to cover an acre per hour, per foot. In other words, a 41-foot machine will cover 41 acres per hour. The I-2100 has been engineered for compatibility with I-Series seeding and fertilizer attachments to allow producers to combine field operations, saving fuel and man hours.
Coulters and Mounts
- 20” dia x 5mm coulter
- Boron steel blades
- 8 or 13 wave blades
- 7” of vertical travel
Frame
- Heavy Duty 4”x 6” tubing
- Hydraulic level lift
- Hydraulic single-point depth control
- Heat treated cast clevis hitch
- Operator convenience center
- Welded main frame with capped tube ends
Tires—Mainframe
- 12’ 6 bolt 11L x 15 “F”
- 16’ 6 Bolt 11L x 15 “F”
- 20’ – 24’ 8 bolt 12.5 L x 15 “F”
- 28’ - 36’ 8 bolt 305/70 x R22.5
- 41’ (3 Section) 8 bolt 305/70 x R22.5
- 41’ (5 Section) 8 bolt 425/65 x R22.5
- 50’ (5 Section) 10 bolt 425-65R x 22.5
- 60’ (5 section) – 10 bolt 445-65R x 22.5
Tires—Wings
- 20’ – 41’ All Wings
- 11L x 15 6 bolt load range “D"
- 50’, 60’ – All Wings
- bolt 12.5 L x 15 “F”
Finishing Package
- FlexFinish Hydraulically Adjustable Tines and Rolling Baskets (28' and up only)
- Manually Adjustable HD Tines and Rolling Baskets
Finishing Package Consist of:
- Heavy Duty 3 Bar 1/2” Tines
- 1/2” dia. tine, strength for exceptional leveling
- 3 ranks with 20” clearance
- No tool pitch adjustment
- Heavy Duty 14” Rolling Harrow
- Adjustable down pressure
- Triple seal 1.5” bearing resists rock damage, even at high speed
- Flex finish hydraulically adjustable rolling harrow (Optional, 28' and up only)
Options
- 100-lb. Weight Kits
- Adjustable Tow Hitch (one-man connection)
- Hydraulic Lines and Quick Coupler to Tow Hitch
- Axle Pivot Grease Bank
- Switchblade Hydraulic Shank
- Roller Dirt Shield
