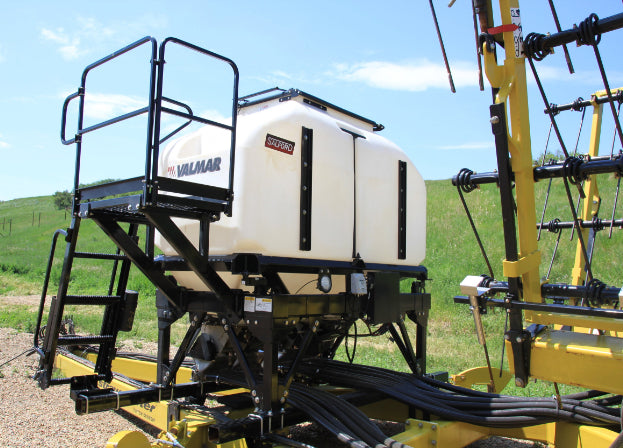

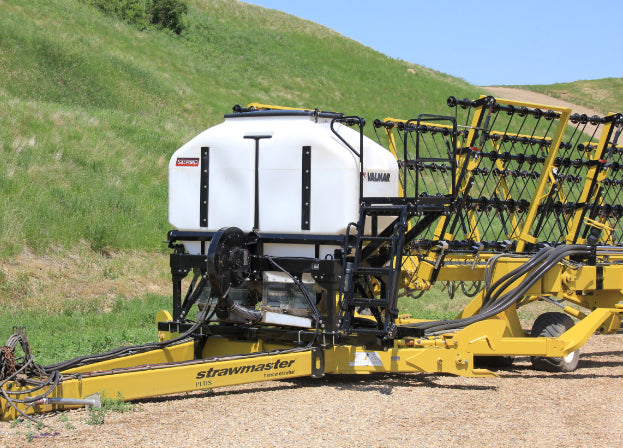

The ST-4 Frame Mount is available independently as a skid-mounted system for use on 3rd party implements such as Degelman Harrows.

The polymer tanks are designed to be configured for multiple applications. They will soon be available with liquid fertilizer or pressurized air system upgrade kits. In the case of the liquid upgrade, the ST-4 will have the unique capability to deliver liquid and dry product on the same steerable frame. The pressurized upgrade brings the highly accurate Salford air seeding metering system to the ST-4 and allow product to be delivered reliably to a wide range of implements.

• ST-4 Single Product / 4 Ton Plastic Hopper Fertilizer System
• Hopper screen assembly
• Hydraulic Circuits (8-20 Outlet)
• Hopper Capacity: 4 Ton/120 cu-ft. poly tank

Metering:

• 4-Section hydraulic variable rate metering
• Plastic peg meters rollers with brush for self cleaning
• Manual hopper bottom shut-off slide gates
• PWM Valve
• Meter encoder, Fan speed sensor, Bin level sensor

Hydraulic Requirements:

• Requires 30-42 gpm @ 2800 psi (single fan or dual fan)
• Case drain required
• Hoses to tractor not included

• Foot Pedal for Mueller Controller -Used for manual engage/disengage of sections where cab display restricts use of automatic section control.
• Heavy Harrow Air Kits -100' Harrow Bar Air Kit

Mounting Options

• Degelman Harrow

4-Section hydraulic variable rate metering including:

• Plastic pegged meter rollers
• Shut off slide gates
• 4 GPM PWM valve
• Meter encoder, fan speed and bin level sensors
• Main controller harness (adaptor harness may be required to plug into 3rd parts ECU)

Meter Options

• Low Rate Pegged Meter Rollers (requires 4)

Air Diffuser Kits

• Air diffuser kit comes with diffusers, hose clamps, drop hose to knife (please specify 1½" or 1¼" outlets on order.

Scales & Control Packages

• John Deere Rate Controller 2000/RCM RATE CONTROL READY - Includes compatible bin level sensor and adapter harness (ECU NOT included)
• ISOBUS CONTROLS FOR SINGLE BIN ST/FERTI-GO - Includes ECU, implement harness bin level sensor (Display NOT included)
• DIGISTAR SCALE KIT (1 GT400 CAB READOUT)
• DIGISTAR SCALE-LINK SCALE KIT (FOR ISOBUS DISPLAYS)
• DIGISTAR SCALE-LINK SCALE KIT (FOR DEERE CANBUS)
• GPS PUCK FOR HYD DRIVE GROUND SPEED SENSING (May be required for some 3rd party displays including aftermarket installations of JD 2630's.)

• Salford Applicators
