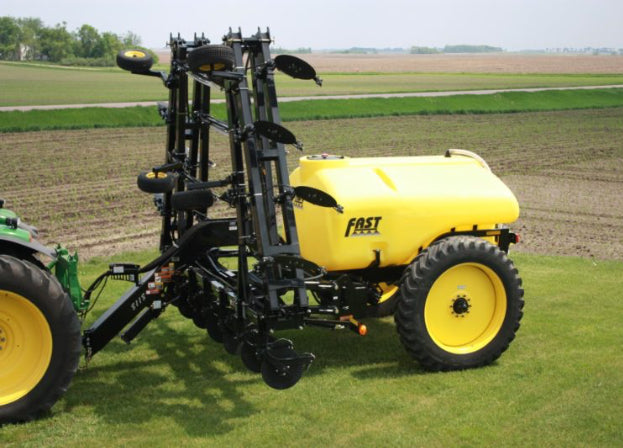

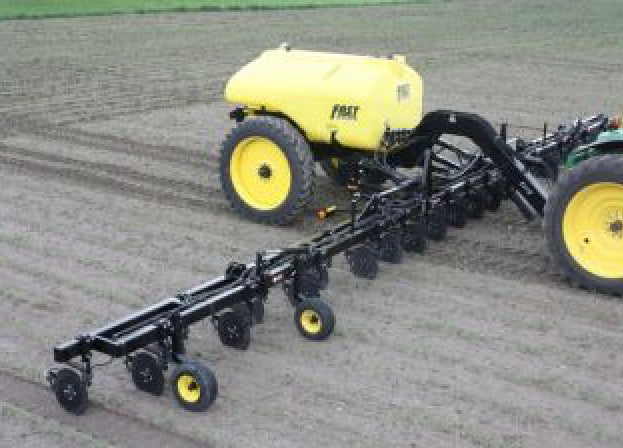

Fast 8100 Liquid Applicator
Please call 419-942-3512 for pricing.
Need more information about this product?
Call us at 419-942-3512.
- Product Description
- Additional Product Info
- Application Studies
- Videos
- Testimonials
Tank and Trailer
- Low-profile, patented “stealth” tank design improves rear vision and improves stability
- Sloped sump tank design assists in maximum clean-out
- Short-coupled trailer minimizes crop damage on hills and during turns, resulting in greater yield
- Single-reach tongue enables a sharper turning radius with less crop damage
- Dual-wheel capable, with one option of 62″ to 120″ to fit your operation
- Long-lasting hydraulic pump features a flow limiter for overspeed protection
- 2-speed heavy-duty jack stand with safe and easy hooking and unhooking
- Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale value
Toolbar
- 6″x4″ double-tube toolbar
- External hydraulic fold cylinder enables operator to fold the outer wings in and still use it at 40’
- Trademarked wing kick feature engages when turning on headlands, tilting the outer wings up, resulting in less crop damage
- High clearance helps prevent crop damage during turns
- Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent
- Three flexing sections in toolbar flexes to promote better ground penetration, even depth control and fertilizer placement in uneven terrain
- Four-gauge wheels help achieve consistent application across toolbar
FAST Cast AP Coulters
- Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
- Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
- Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
- Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
- Ability to set degree of coulter swivel
Specifications
- Model: 8100 Vertical Fold
- Transport Height: 16'1"
- Shipping Transport Width: 16'10"
- Working Transport Width: 20'5"
- Transport Length: 21'1"
- Empty Weight (lbs.): 12,110 (23 coulters)
- Hitch Pin-to-Axle Length: 15'9"
- Tank Size(s) (gal): 1800
- Toolbar Size(s): 60'
- Standard Tires: 380/90R46″
- Delivery Type: Knife or Injection
- Toolbar Crop Clearance (in field position): 27.5"
- Std Hydraulic Pump: Ace 205-304F
- Toolbar Tube Size: 5"x7" double bar, single on outer wings
- Hydraulic Down Pressure: Yes
- Hydraulic WingKick: Yes
Product Description
Tank and Trailer
- Low-profile, patented “stealth” tank design improves rear vision and improves stability
- Sloped sump tank design assists in maximum clean-out
- Short-coupled trailer minimizes crop damage on hills and during turns, resulting in greater yield
- Single-reach tongue enables a sharper turning radius with less crop damage
- Dual-wheel capable, with one option of 62″ to 120″ to fit your operation
- Long-lasting hydraulic pump features a flow limiter for overspeed protection
- 2-speed heavy-duty jack stand with safe and easy hooking and unhooking
- Baked-on powder coat paint resists effects of harsh chemicals, increasing equipment life and resale value
Toolbar
- 6″x4″ double-tube toolbar
- External hydraulic fold cylinder enables operator to fold the outer wings in and still use it at 40’
- Trademarked wing kick feature engages when turning on headlands, tilting the outer wings up, resulting in less crop damage
- High clearance helps prevent crop damage during turns
- Hydraulic down pressure on the wings gives coulters better ground penetration and more consistent
- Three flexing sections in toolbar flexes to promote better ground penetration, even depth control and fertilizer placement in uneven terrain
- Four-gauge wheels help achieve consistent application across toolbar
FAST Cast AP Coulters
- Patented AP coulter design places nitrogen at a consistent depth and flexible mounting
- Coulter is cast for long term-durability, ability to offset shank in eight different positions, and increased stability in varying soil conditions
- Coulter casting increases stability and minimizes deflection in the field, resulting in more consistent nitrogen placement
- Hex shank design allows toolbars to match up with nearly any row spacing and provides ability to offset 7.5” to the left or right quickly without additional brackets
- Ability to set degree of coulter swivel
Specifications
- Model: 8100 Vertical Fold
- Transport Height: 16'1"
- Shipping Transport Width: 16'10"
- Working Transport Width: 20'5"
- Transport Length: 21'1"
- Empty Weight (lbs.): 12,110 (23 coulters)
- Hitch Pin-to-Axle Length: 15'9"
- Tank Size(s) (gal): 1800
- Toolbar Size(s): 60'
- Standard Tires: 380/90R46″
- Delivery Type: Knife or Injection
- Toolbar Crop Clearance (in field position): 27.5"
- Std Hydraulic Pump: Ace 205-304F
- Toolbar Tube Size: 5"x7" double bar, single on outer wings
- Hydraulic Down Pressure: Yes
- Hydraulic WingKick: Yes
